Resistive touch screen Panel-PC are very robust, fanless, dust-resistant & splash-proof
Available in different screen sizes (10, 12, 15 and 19 inches), these TEOS TOUCH panels-PC are equipped with high-brightness IR Touch panels for even more clarity, precision and robustness; they also integrate an INTEL BayTrail J1900 processor, as well as an easily accessible hard disk, thanks to a removable cover. Alternatively, the TEOS Touch hardware can be supplied with a special Flash Disk (Solid State Drive), which replaces the HD. Last but not least, the front side of the display is robust – dust and waterproof – with an IP65 protection rating.
| Processor | INTEL Bay Trail Quad Core |
| Chipset | CPU integrated |
| Memory | 4 GB x DDR3 SO DIMM up to 8 GB |
| LCD/touch panel | |
| Dimensions | 10.4’’ |
| Brightness (cd/sqm) | 300 |
| Max resolution | 800 x 600 |
| Touch panel | Resistive |
| STORAGE | |
| SSD Disk | 64GB |
| Expansion | 1 x mini PCI socket |
| COMMUNICATIONS ports | |
| USB | 4 x USB 2.0 + 1 x USB 3.0 |
| Serial/COM | 3 x RJ-48 COM1/COM2/COM3 (with 5 or 12V) |
| LAN (10/100/1000) | 1 |
| WLAN / WIFI | 801.11 b/g LAN card (option) |
| VGA | 1 output to connect a 2nd screen |
| Cash drawer | 1 |
| DC Jack (Audio) | line in + line out |
| Speaker | 2 X 2W |
| ENVIRONMENT | |
| Safety and EMC | CE, FCC Class A, LVD, EN60601-1-2 |
| External Power Adapter | 65W - 19V 3.4A |
| Operating temperature | 0° to 50° (32°F to 122°F) |
| Storage temperature | -20° to 60°C (-4°F to 140°F) |
| Humidity | 20% - 80% (RH non-condensing) |
| Dust and Water Proof | IP 65 protection rating |
| VESA mounting | 75 mm x 75 mm |
| Dimensions (W x D x H mm) | 279 x 50 x 227 |
| Weight | 1.7 kg (net) |
| OS Support | Windows 10 IoT Enterprise, Windows 8 Industry, Windows 7 Pro, POS Ready 7, Linux |
Technical support

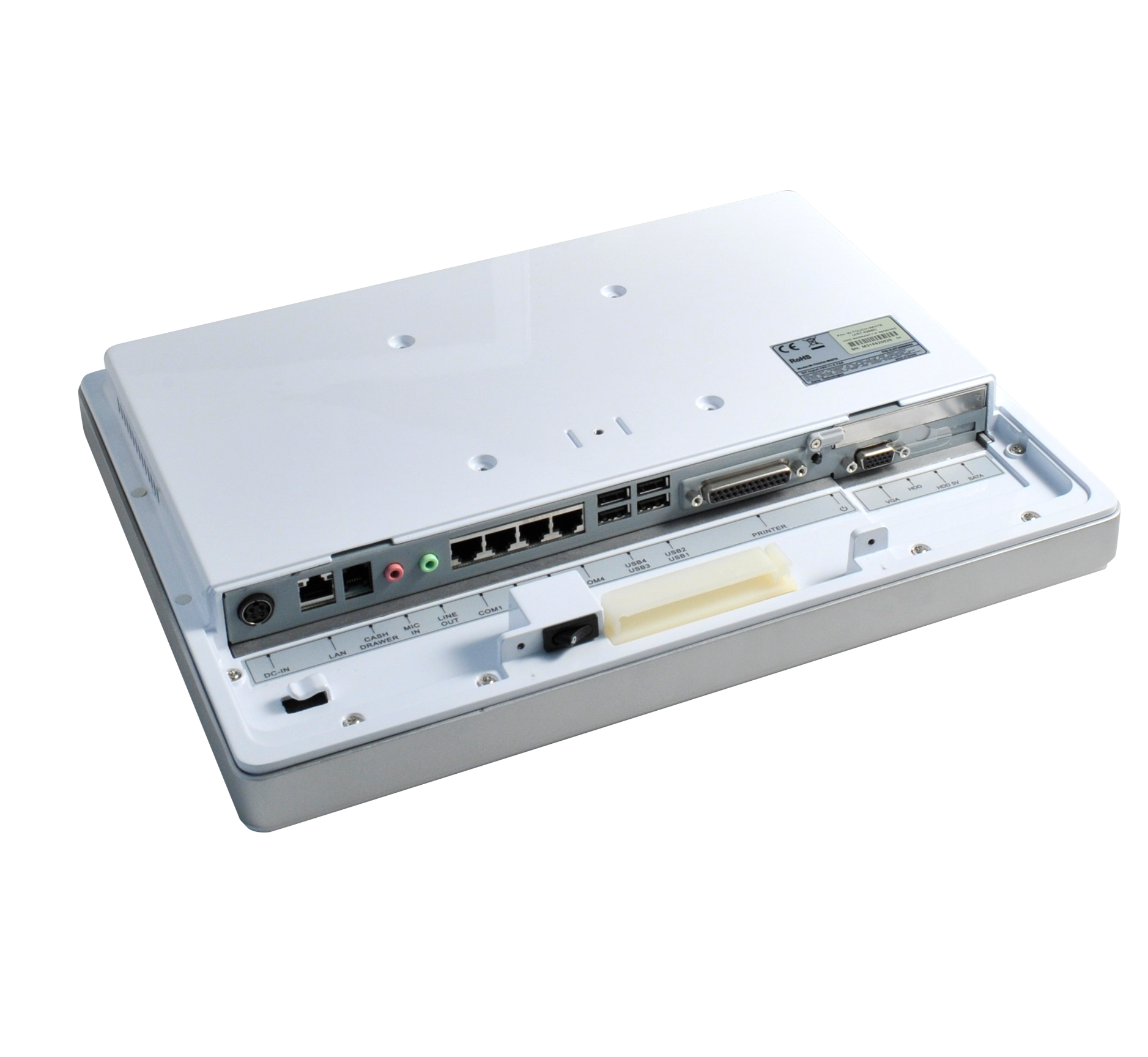

Product pictures
