YUNO KIOSK

Integrated POS/OEM systems for wall mounted and kiosk applications

I share

FLEXIBLE, ADJUSTABLE & ROBUST

Now equipped with a Kaby Lake 3965U, I5 or I3 platform, the YUNO Kiosk range from AURES includes compact, high-performance fanless systems that will find their place in all OEM, KIOSK and POS applications.

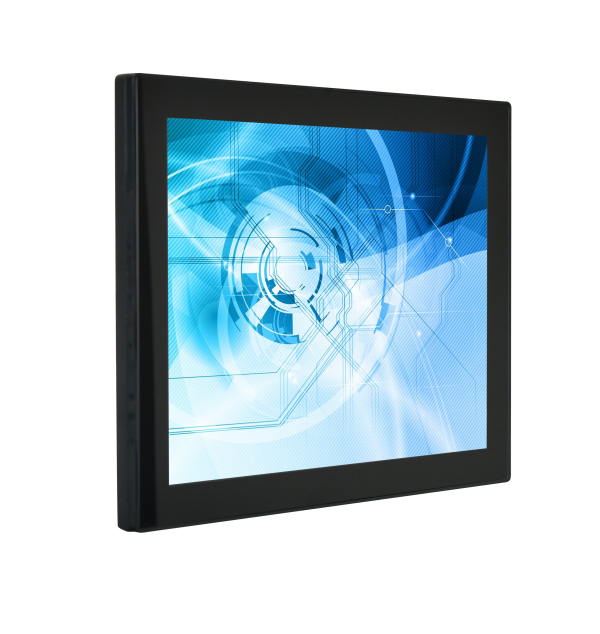

Available in 17” (4/3 format), 22” and 27” (Wide 16/9 format), their projected capacitive panels are multi-touch (PCAP technology – 10 points) and are shock and scratch resistant.

The hardware is suitable for a wide range of applications, thanks to its VESA mountings (75 x 75); it can be supplied as wall or pole mount, for quick and easy integration into all configurations, including interactive kiosks.

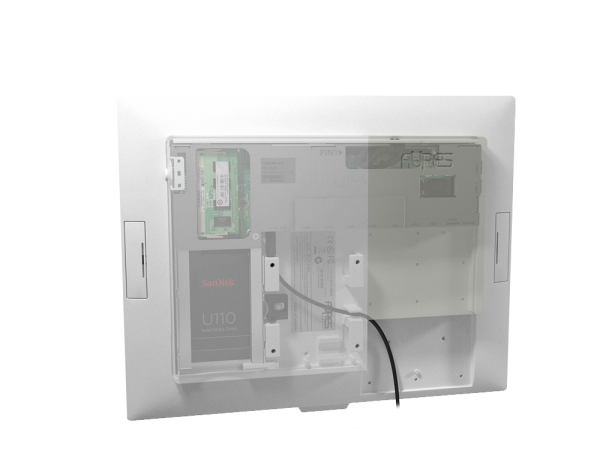

Equipped as standard with a 128 GB flash disk (SSD M.2) (2 slots), the product stands up to dirt in the toughest settings.

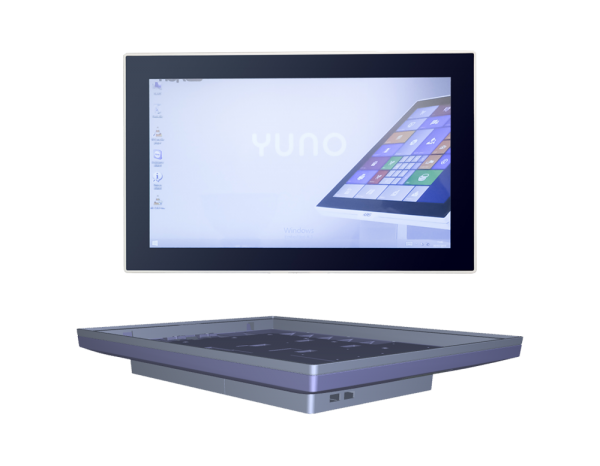

The YUNO Kiosk 22” model is equipped on its sides with a system of very easily accessible hatches, to receive and attach a whole series of compatible associated peripherals (MSR, barcode, biometric readers, for example).

Model YUNO KIOSK 17, 22 & 27’’
Processor Kaby Lake 3965U, i3-7100U or i5-7300U
RAM DDR4 8 GB as standard (up to 32 GB)
SSD.M2 128 GB (2 slots)
LCD 17’’, 21,5’’ TFT or 27.1 TFT (1280 x 1024 (17’’) - (1920 x 1080 (22 and 27’’) LED back-lighting
Touchscreen Flat, zero bezel multi-touch screen – with projected, capacitive panel (PCAP)
Brightness 212 cd/m2 (17’’), 250 cd/m2 (22 ‘’) and 270 cd/m2 (27’’)
Input-Output Ports
Serial 4 serial ports (+ 5/12 V power supply for COM3 / COM4)
USB 4 USB 2.0 + 2 USB 3.0
4 USB 2.0 + 2 USB 3.0 (for the i3 version)
LAN 10/100/1000 Base-T
2nd Screen Port with support for HDMI, DVI and VGA (mini Display Port)
Audio Internal loudspeaker, headphones, micro jack plug
Power Supply external 19 V DC
M2 1 slot (WIFI & Audio)
Miscellaneous
EMI CE/FCC Class B
Safety LVD, external adaptor UL c/us, CE, TUV, etc.
Operating Temperature 0-50°C
Front Dust- and splash-proof IP 65
Colours Black
Materials Polycarbonate (cover) + aluminium (structure)
VESA 75 x 75
Dimensions (W x D x H) 369 x 57,6 x 307 mm (17’’) - 517.44 x 313.31 x 54.08 mm (22‘’) 644.60 x 385.03 x 61 mm (27’’)
Weight 4.7 kg (15.1’’) depending on the option
Compatible OS Windows 10 IoT Enterprise
Optional Extras
Audio Internal loudspeaker, headphones, micro jack plug

Focus YUNO KIOSK

+

i3 or Quad-Core Bay Trail J1900 processor

2.5’’ 64 GB SSD (2 slots)

+

Projected, capacitive, multi-touch screen (PCAP)

+

Discreet yet easily accessible connectivity

+

4 GB memory as standard (up to 8 GB)

+

Energy efficient processor (10 W) and low carbon footprint

+

Vertical or horisontal kiosk applications
