ODP 333

Splash-proof POS printer with front receipt printout and cubic design

I share

A CUBIC THERMAL RECEIPT PRINTER FEATURING A TRIPLE INTERFACE AND A LOW POWER MOTHERBOARD

Specially designed for point of sale and service applications, the ODP 333 by AURES is a thermal receipt printer which features a triple interface (including Ethernet) in a minimalist compact and cubic style, available in black or white.

With its front receipt printout, it ensures optimum protection against dust, crumbs and liquid splashes in tough environments such as kitchens, restaurants, bars, bakeries and the like.

Thanks to its Energy Star* certification, it switches automatically to stand-by mode in less than one second after it stops printing, allowing average power savings of at least 30% – embodying and thus respecting the values of Green IT.

Model ODP 333
Print method direct, thermal
Print speed 160 mm / sec
Effective Print Width 72mm / 512 dots/line
Characters per line Font A: 42 columns, 180dpi
Font B : 56 columns, 180dpi / 64 columns, 203dpi
Internal memory 64MB
Motherboard low power consumption – automatic standby mode enables 30% less power use on average
Paper loading automatic
Thermal printer
Width 79,5 mm +/- 0,5 mm
Thickness 0,065 – 0,1 mm
Max. roll diameter 83mm
Characters
Alphanumeric 95
Extended graphic 128 / 18 pages
International characters 14
Barcodes UPC - A, UPC-E, EAN-8, Code 39, Code 93, Code 128, ITF, Codabar,
2D PDF417, QR Code
Emulation ESC/POS compatible
Drivers Windows (10 & 11) /OPOS / Linux / Java POS / Mac OS / Android (SDK, Apk)
Sensor end-of-roll, near end-of-roll, cover open
end-of-roll, near end-of-roll, cover open
1 dual port (for 2 drawers) - RJ11 6-pin connector
Interfaces Triple interface
RS232 Serial - USB & Ethernet dual (non-modifiable)
Power supply External 24V - 2.5A
Paper Auto cutter guillotine type Max. 30 cuts/minute
Cut type total or partial
Other features
MCBF 35-50 million lines depending on type of use and paper thickness
Printer head lifespan: 160km
Paper cutter lifespan: Approx. 1.5 million cuts
Operating temperature -20 to +60°C
Operating humidity 10% to 90% (without condensation)
Dimensions (depth x width x height) 165 x 135 x 105.02mm
Weight 1kg approximately
Colour Black or white

Focus ODP 333

+

Splash-proof receipt printout

path located on the front side for enhanced protection; perfectly designed for all catering and hospitality sectors

+

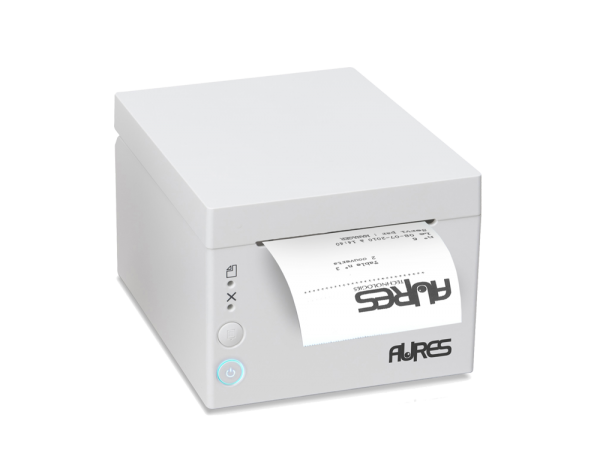

Front receipt printout

+

Contemporary black or white cubic design

Highly compact ergonomic format

+

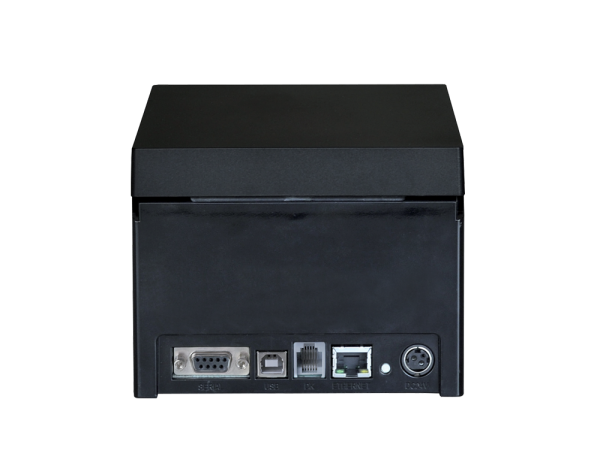

Integrated Triple interface (Serial RS 232C Serial, USB, & Ethernet)

Low power motherboard

+

Configuration utilities

All cables supplied
