DIGITAL DISPLAY SCREENS

Touch and non-touch screens for digital display applications

I share

ADDITIONAL TOUCH OR NON-TOUCH SCREENS FOR POS DIGITAL DISPLAY APPLICATIONS

Designed for interactive and digital display at the till, these compact touch or non-touch screens will emphasize your communications and your customer relationship management at the POS (programming and broadcasting of interactive contents – videos, images, texts, multimedia contents, advertising, contests, loyalty operations, etc.).

In their external versions, positioned on their stand or base, these screens will be placed on the counter near the EPOS to which they are associated.

Equipped with VESA brackets, they are suitable for pole or wall mounted configurations, as well as OEM integrations and environments (for the Kiosk sector for example).

In their integrated versions, they are fixed at the back of the AURES POS terminal (full dual screen EPOS systems; 2nd screen can be touch or non touch, depending on the option).

(Consult us to optimise your configurations, depending on the SANGO, YUNO or NINO POS systems.)

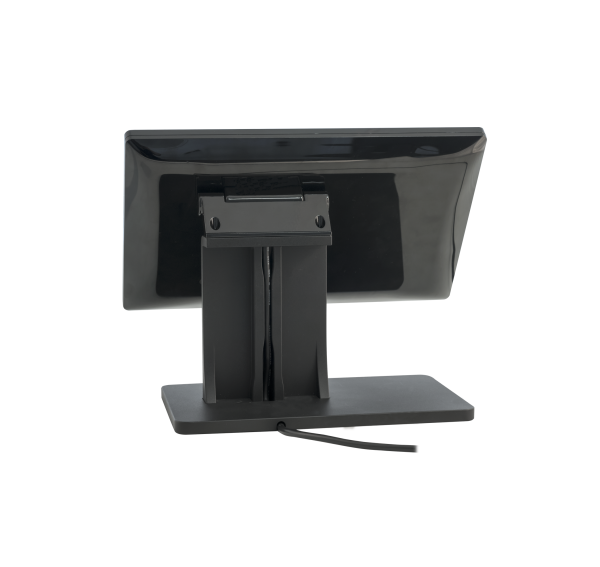

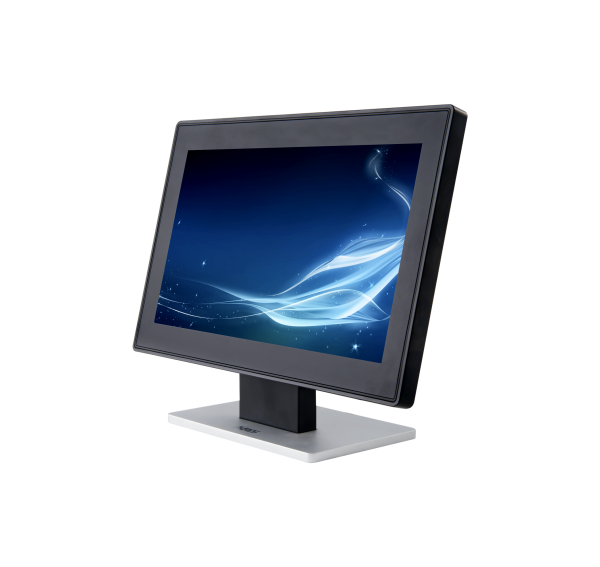

Model OLC 10.1 OLC Touch 10.1
Main chip Display link DL – 4110 (N)
LCD Panel 10,1’’ – non touch 10.1’’ 16:9 touch panel (PCAP Technology)
Brightness 250 cd/m2 350 cd/m2
Resolution 1024 x 600 (fixed) 1024 x 600
Viewing angle (left, right, top, bottom) 70° / 70° / 50° / 70° 80° / 80° / 80° / 80° (left, right, top, bottom)
Tilt angle 0 - 80°
Connections
1 USB cable (power and data) for the standalone version 1 single USB cable, 180 cm (power, video, touch screen)
Environnement
EMC & Safety CE, FCC Class A, LVD CE, FCC Class A, LVD
Operating temperature 0 ~ 40°C 0 ~ 40°C
Storage temperature -20 ~ 60°C -20 ~ 70°C
Humidity level (while operating) 20% to 80% RH – condensation-free 20% to 85% RH – condensation-free
Humidity level (storage) 20% to 85% RH – condensation-free 20% to 85% RH – condensation-free
Dimensions (H x W x D) Standalone version: 190 x 265 x 95 mm (7.5'' x 10,4" x 3.7") 200 x 260 x 155 mm
sango-integrated version:
172 x 263 x 14 mm (6.8" x 10,3"x 0.5")
Weight standalone version:
approximately 1.06 kg (2.3lbs)
2.1 kg (net)
Options for the standalone version only

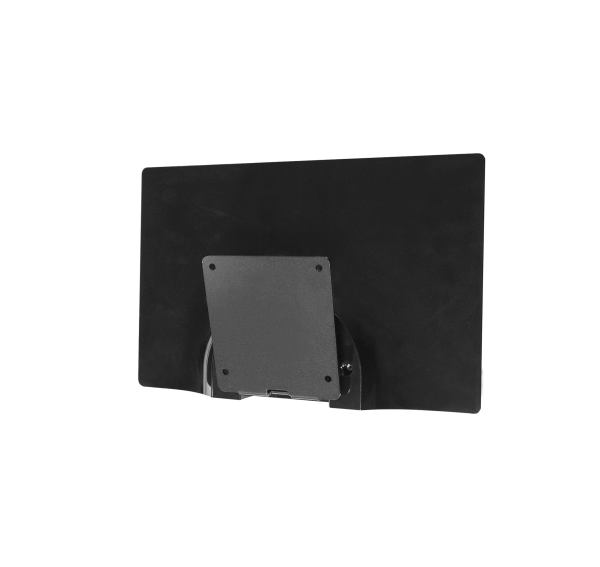

75 x 75 VESA standard
VESA Brackets 75 x 75 mm
Stand-alone version (external device, connected to any EPOS)
Dual screen version (integrated to the YUNO system)
Pole version (thanks to the VESA fixings)
Colours Black Black or White

Focus DIGITAL DISPLAY SCREENS

+

75 x 75 VESA standard

for the standalone version only

+

POS promotional displays

Adjustable non touch screen

+

1 single USB cable

180 cm (power, video, touch screen)
