An irresistible POS system with an exclusive, innovative concept
Now equipped with INTEL 11th Gen processors

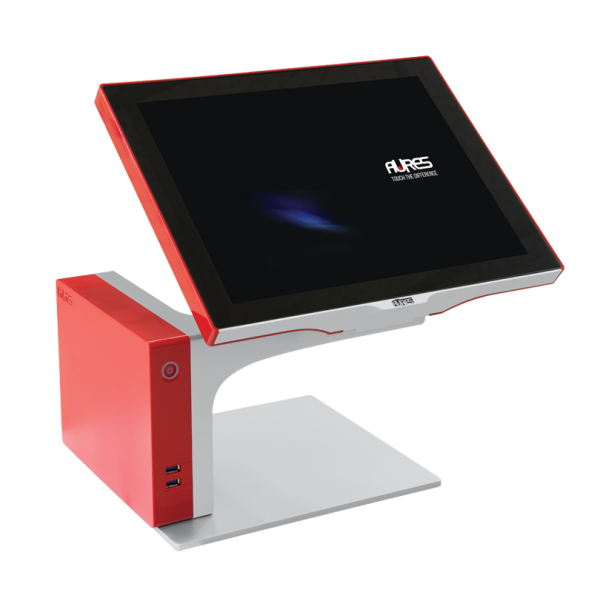

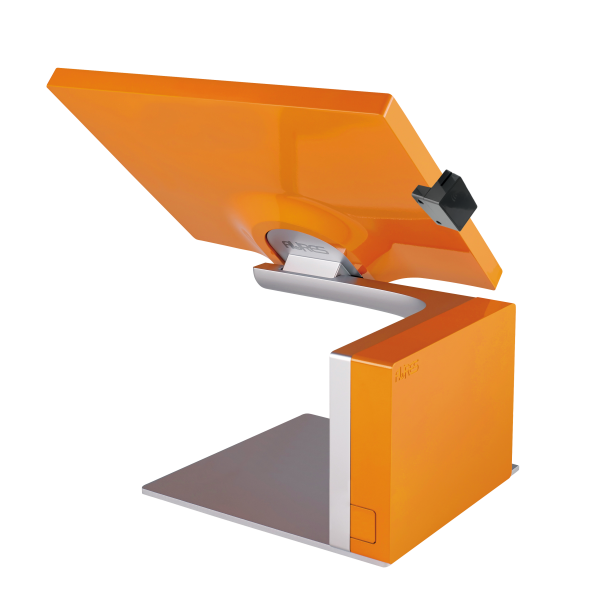

With no intrusive base, stand or foot, SANGO soars effortlessly, as if weightless, offering and revealing a
space traditionally occupied by the central unit and motherboard. Elegantly attached and suspended from its offset cast aluminium arm, the POS combines minimalist aesthetics (in a unique choice of 7 different shades) and ease-of-use – as well as lower power consumption.
Stable and rigid, its thin metal base (a natural extension of the slender arm) acts as a heat sink. Equipped with an NVMe.M2 SSD, SANGO will adapt to the technology requirements of all users.
3 types of INTEL 11th Gen processors are now available, including a fanless i5 for boosted performance,
as well as a range of connection options. The flat LED touch monitor, with an edgeless surface,
is offered in multi-touch projected capacitive (PCAP) technology.
| Model | J6412 | i3 | i5 vPro |
| Processor | Intel Elkhart Lake J6412 2.6GHz | Intel Tiger Lake i3-1115G4E 3.9 GHz | Intel Tiger Lake i5-1145G7E 4.1 GHz |
| Memory (RAM) | 8GB DDR4 SODIMM up to 32GB | 8GB DDR4 SODIMM up to 32GB | 8GB DDR4 SODIMM up to 32GB |
| Graphics Memory | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics |
| Flash Disk | NVMe.M2 256GB 2 slots available | ||
| Touch panel | 15'' LED backlit LCD projected capacitive multi-touch panel (PCAP) (ELO Touch resistive optional) | ||
| Resolution | 1024 x 768 | ||
| Brightness | 350 cd/m² | ||
| inputs / outputs | |||
| Front | |||
| Power Button | 1 | ||
| USB | 2 x USB 3.0 | ||
| Rear | |||
| USB | 4 x USB 3.0 | ||
| Serial/COM | 4 x RJ50 (2 self-powered) | ||
| LAN | 1 LAN 10/100/1000 | ||
| Cash drawer | 1 x RJ 12 (12V / 24V) | ||
| Display Port | 1 (for 2nd screen) | ||
| Others | |||
| Security | TPM2.0 | TPM2.0 | TPM2.0 & vPro |
| Power supply | external 65W – adaptor 19V /3.42A | ||
| Dimensions (W x H x D) | 410 x 400 x 260mm / 16.1'' x 15.7'' x 10.2'' (working position tilted at 45°) | ||
| Net weight | 8.70kg / 19.2lbs (not including power supply or customer display) | ||
| Materials | cast aluminium and polycarbonate | ||
| Colours | 7 modular colours (polycarbonate covers) White, Black, Red, Orange, Blue, Grey, Cassis | ||
| Comptatible OS | Windows10 IoT, Windows 11, Linux | ||
| Options & peripherals | |||
| Graphic customer display (high readability) | |||
| Cards, Dallas keys - & Addimat readers | |||

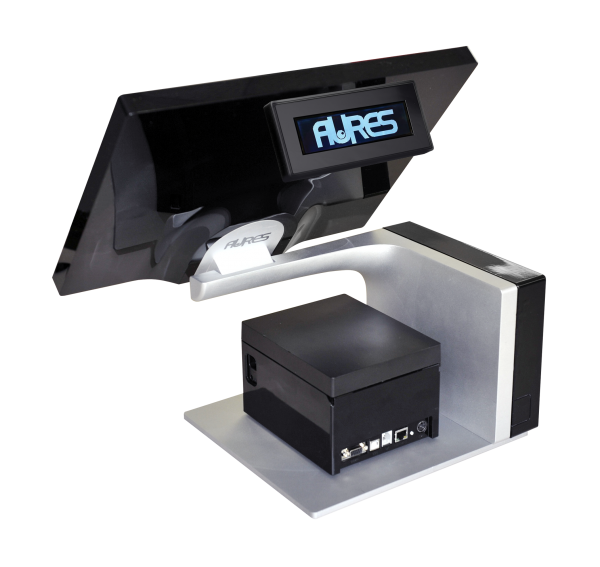

| 1D and 2D barcode readers, receipt printer | |||

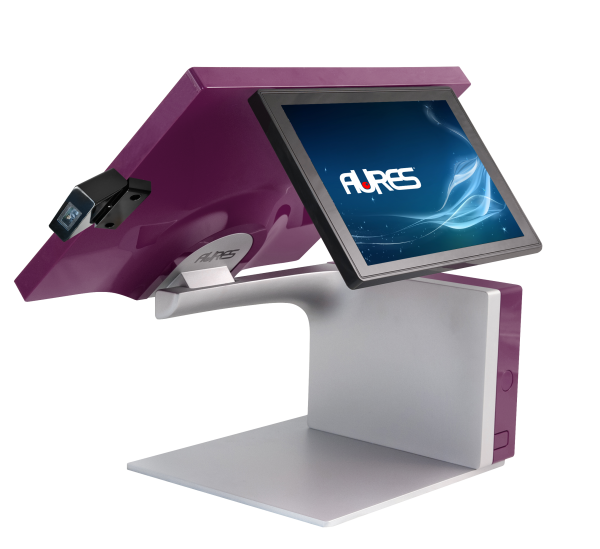

| 10'' 2nd screen | |||
| Audio: Internal loudspeaker, line out jack |
7 modular colours available: White, Black, Red, Blue, Orange, Grey & Cassis
Skylake i5 / Skylake i3 / Bay Trail J1900
This unique and hi tech device reads both MSR and RFID (low and high frequencies, Bluetooth (BLE) and NFC); additionally, AURES is in a position to supply all compatible associated devices (hardware and virtual elements): pre-programmed key-tag badges (iClass 2 KB), self-adhesive chips (also pre-programmed), standard badges (credit-card format), as well as virtual credentials for use with smartphones.
